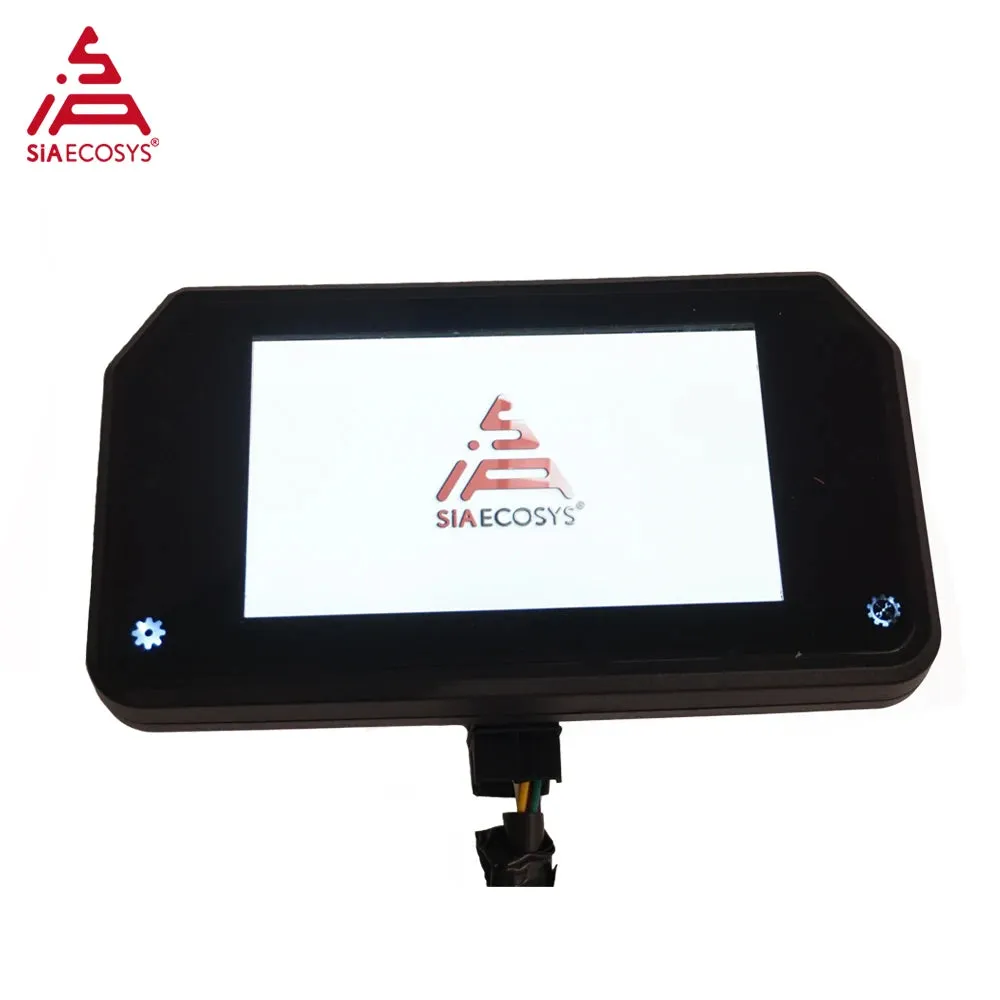

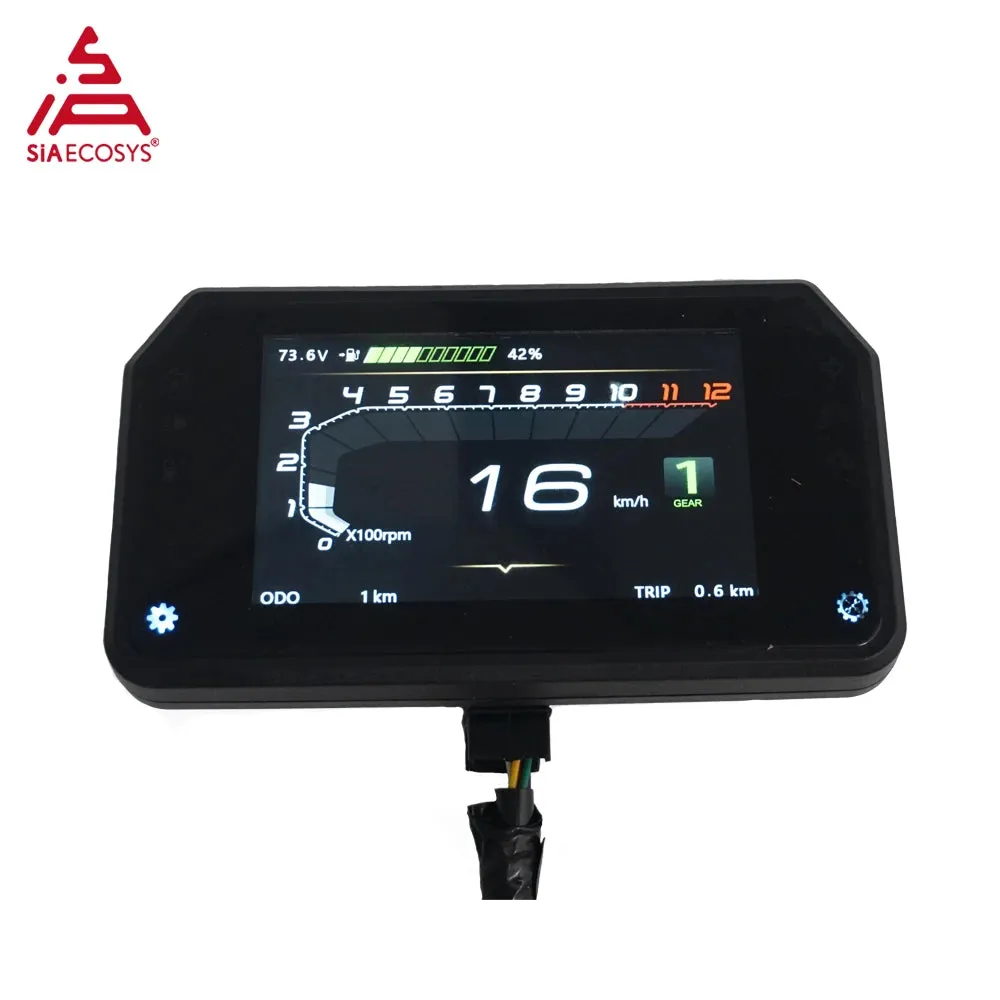

SIAECOSYSAdjustable TFT T15 with CAN-BUS Communication Speedometer for Electric Scooter Optional Instrument LCD Display Speedometer

P.S. If you have any confused about the shipping cost, please feel free to contact with us.

Also could place order but don't pay first, then we could adjust the price.

One set including below kits

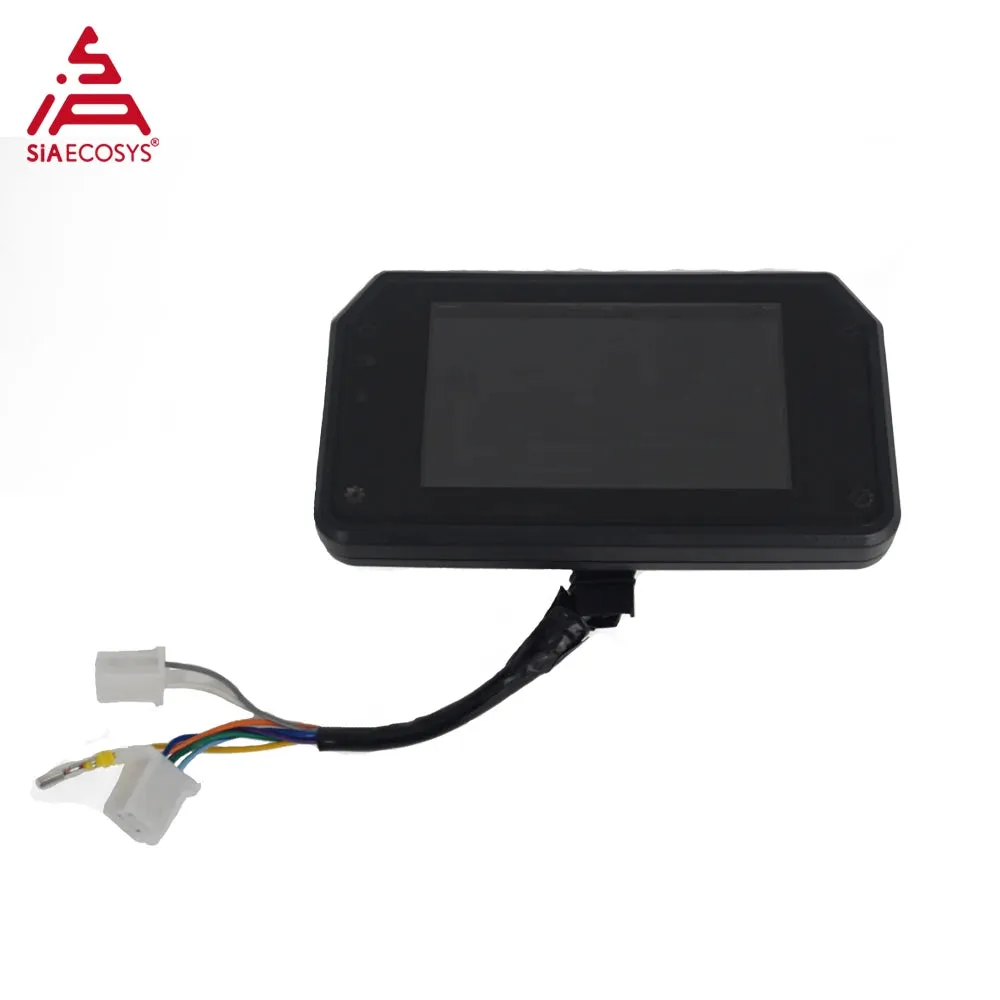

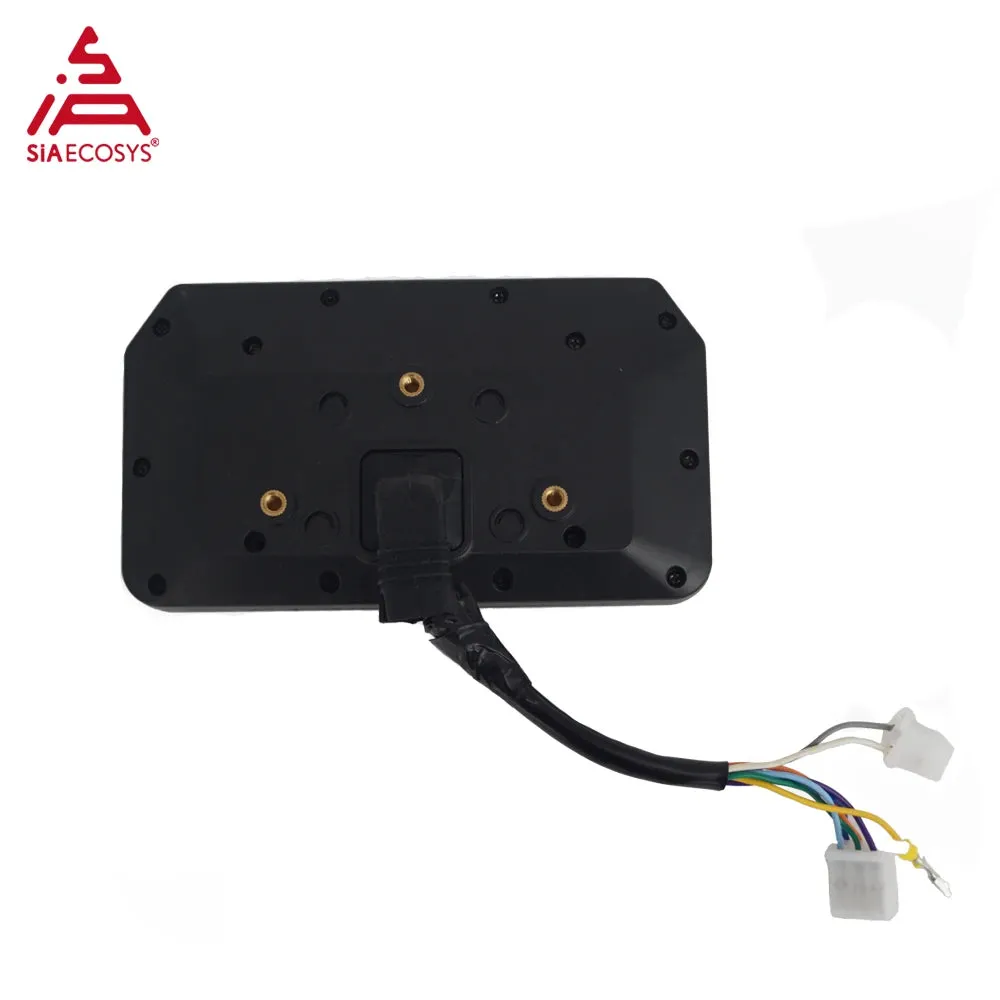

1. 1pcs X TFT T15 Speedometer with CAN (adjustable with CAN box)

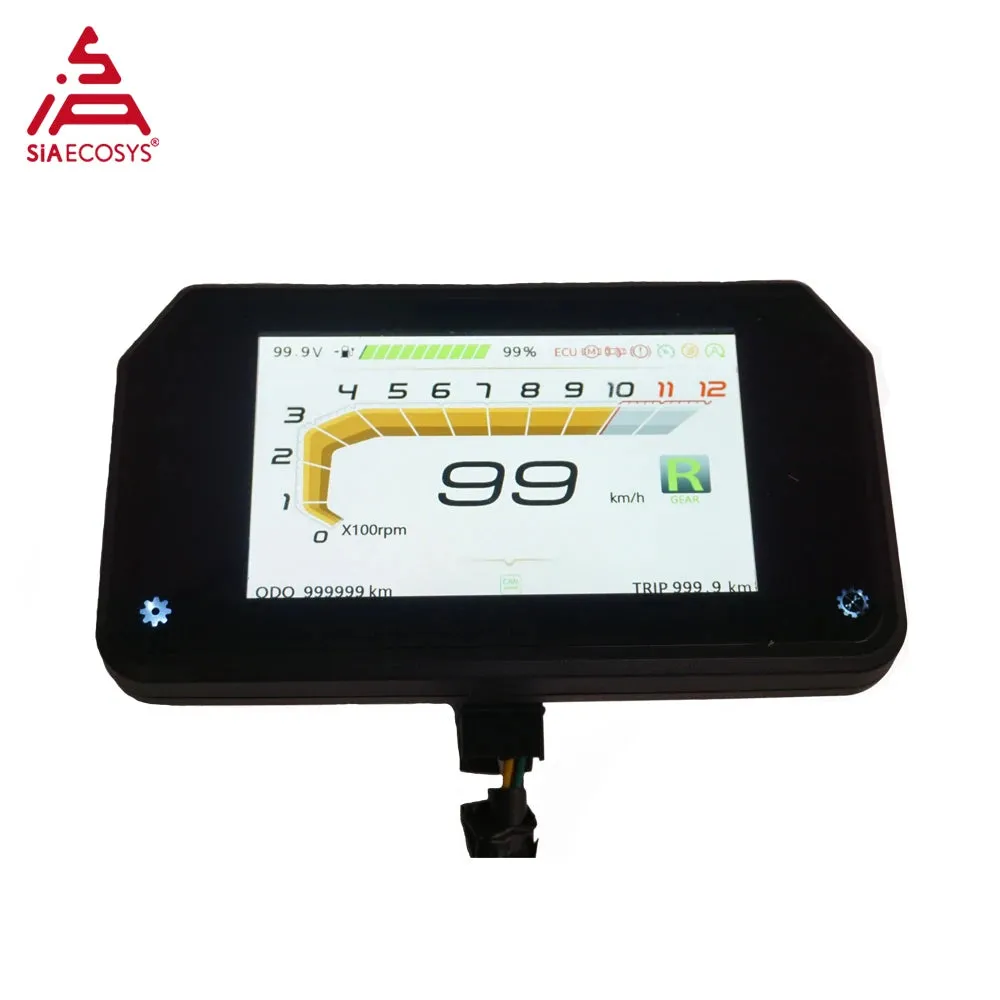

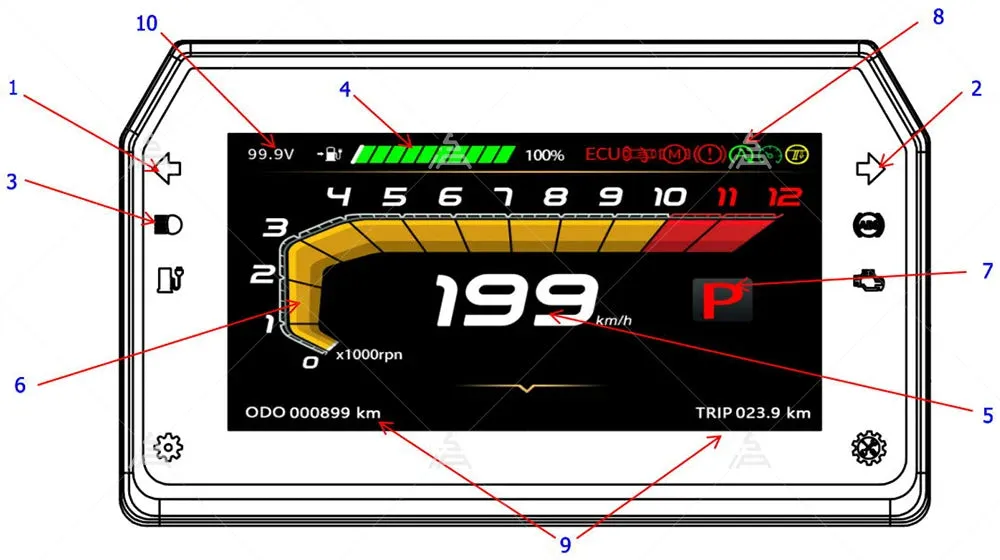

Product Description

1. Left turn indicator;

2. Right turn indicator;

3. High beam indicator;

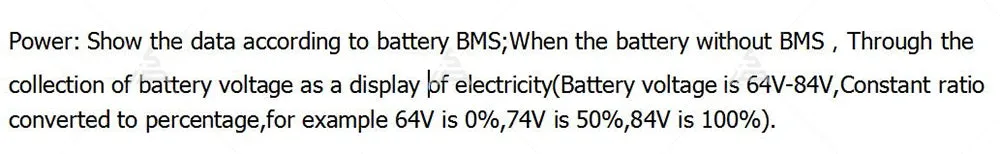

4. Voltage power indication;

5. Speed display;

6. RPM display;

7. Gear display(1/2/3/S/P/R gear);

8. Indicator icon display;

9. ODO/TRIP display;

10. Voltage display;

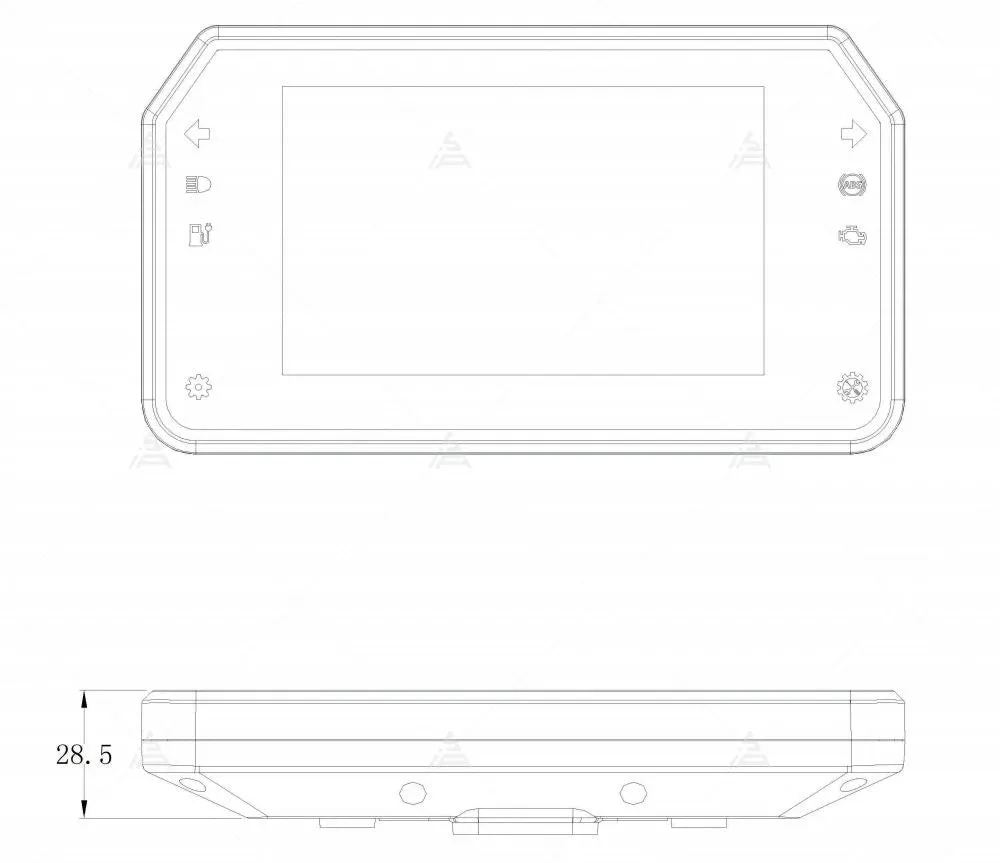

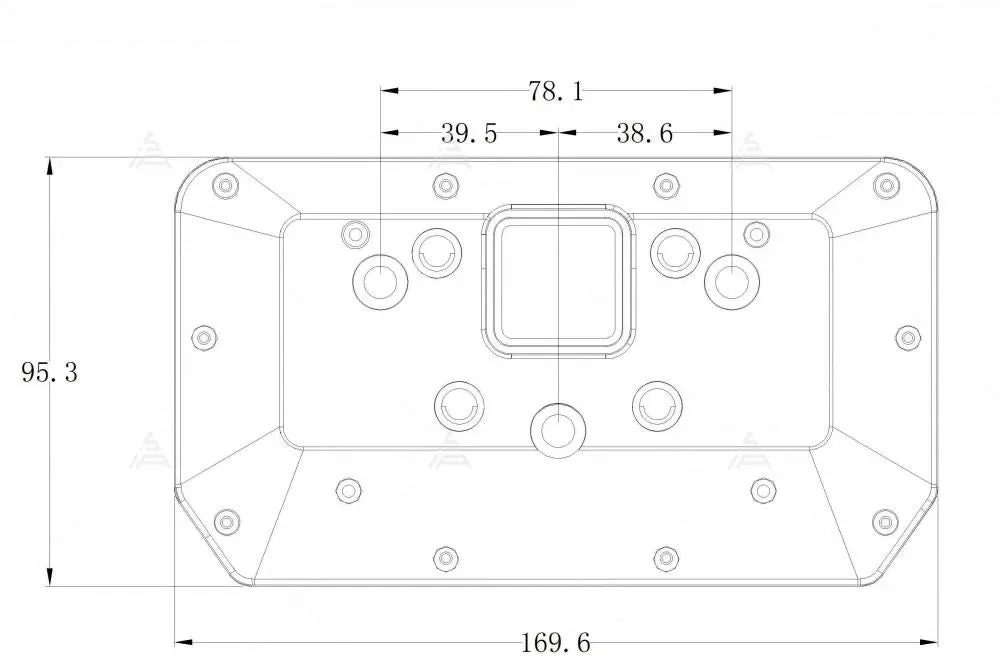

Drawing

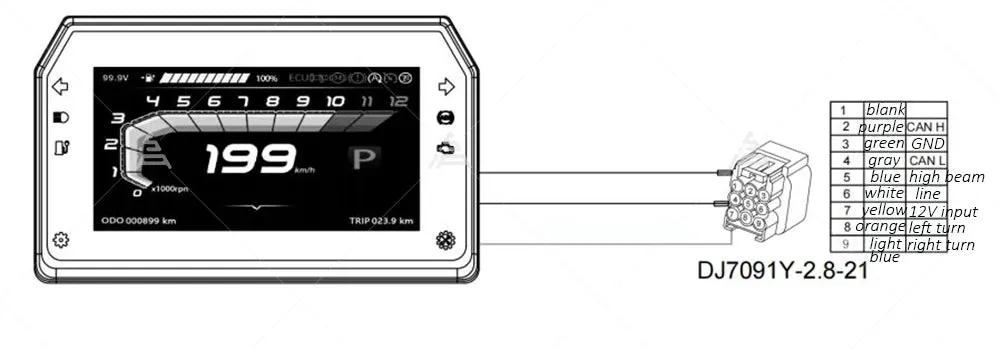

Cable schematics

Work Voltage: 12V (pls pay attention, black wire( 12V) need to connect with 12V, cannot connect to battery B , or the speedometer will get damaged)

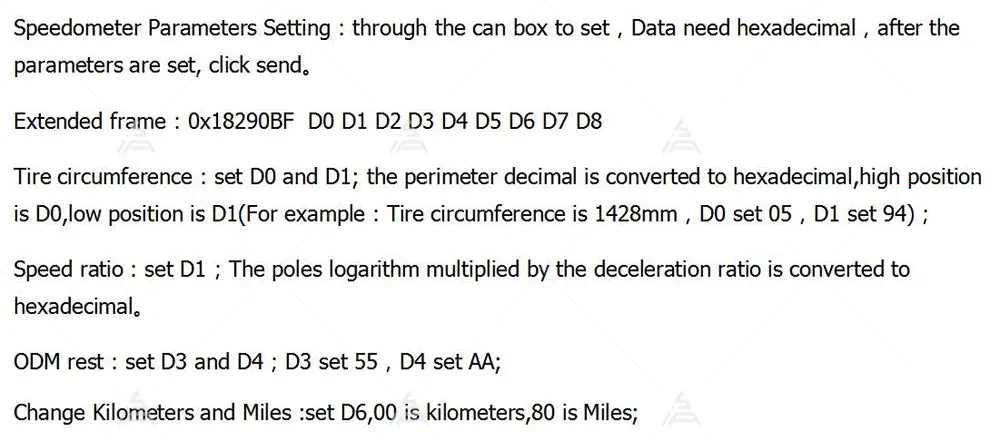

User Manual
