Product Description

• H.265 /H.265 dual-Stream video compression

• Supports Full-channel AI Coding

• Supports HDCVI/AHD/TVI/CVBS/IP video inputs

• Max 16 channels IP camera inputs, each channel up to 8MP; Max

• 128 Mbps incoMinimumg bandwidth

• Up to 2 channels video Stream (analog channel) Perimeter Protection

• Up to 8 channels video Stream (analog channel) SMD Plus

• Up to 2 channels video Stream (analog channel) human face recognition

• IoT & POS functionalities

• Simultaneous/heterogeneous video sources output for VGA and HDMI is configurable

• Launched by Dahua Technology, WizSense is a series of AI products and solutions that adopt independent AI chIP and deep learning algorithm

• It focuses on human and vehicle with high accuracy, enabling useRS to fast act on defined targets. Based on Dahua's advanced technologies, WizSense provides intelligent, simple and inclusive products and solutions

• Series Overview

• Dahua Technology, a world-leading video-centric smart IoT solution and service provider, debuted its new XVR series, XVR5000-4KL-I3 Series featuring Maximumfull-channel SMD Plus to benefit customeRS from

• AI upgrade (The number of channels diffeRS depending on the model
  Please refer to the specifications below for information on the numberof channels.)

• This series has been developed to reduce false-alarm rates and the cost of human surveillance, thus bringing great value to customeRS in search of products with accurate human/vehicle alarm to raise the security level of various indoor and outdoor facilities

• Functions

• Real Time Face Recognition

• Video Stream real time face recognition. Facial attributes analysis features including gender, age, expression, glasses, moustache, face mask. Identify people and also capture, record faces with metadata

• Facial feature filtering while real time display, Only show faces with target features

• Perimeter Protection

• Automatically filtering out false alarms caused by animals, rustling leaves, bright lights, etc. Enables system to act secondary recognition for the targets. Improving alarm accuracy

• SMD Plus

• With intelligent algorithm, Dahua Smart Motion Detection technology can categorize the targets that trigger motion detection and filter the motion detection alarm triggered by non-concerned targets to realize

• effective and accurate alarm

• AI Coding

• Compared with H.265/H.264, AI coding can reduce more than 50% bit rate and storage requirements while have no loss of decoding compatibility, providing clear human and vehicle details

• Smart H.265

• Smart Codec, H.265 can reduce up to 90% bit rate and storage requirements compared with H.264 without having to invest in new cameras

• HDCVI/AHD/TVI/CVBS Auto-detect

• The XVR can auto recognize the signal of front-camera without any setting. It makes operation more friendly and convenient

• High Definition Camera Input

• The XVR supports up to 4K HDCVI camera and 8MP IP camera input

• Coaxial Audio/Upgrade/Alarm

• The integrated design can reduce wiring troubles which makes it much more cost-effective and convenient for installation

• Long Distance Transmission

• The HDCVI system supports long distance transmission over coaxial cableand UTP, Maximum 700 m for 4K/4MP, 800 m for 1080p and 1200 m for 720p

• AI Search

• Support AI seach by metadata of different targets or uploading face pictures to device and comparing them with recorded faces by similarity

• Enable operatoRS to quickly and easily search through multi channels and long duration, efficiently find out when and where a peRSon of interest appeard

Product Specification

Brand	Dahua
Product Type	Digital Video Recorder

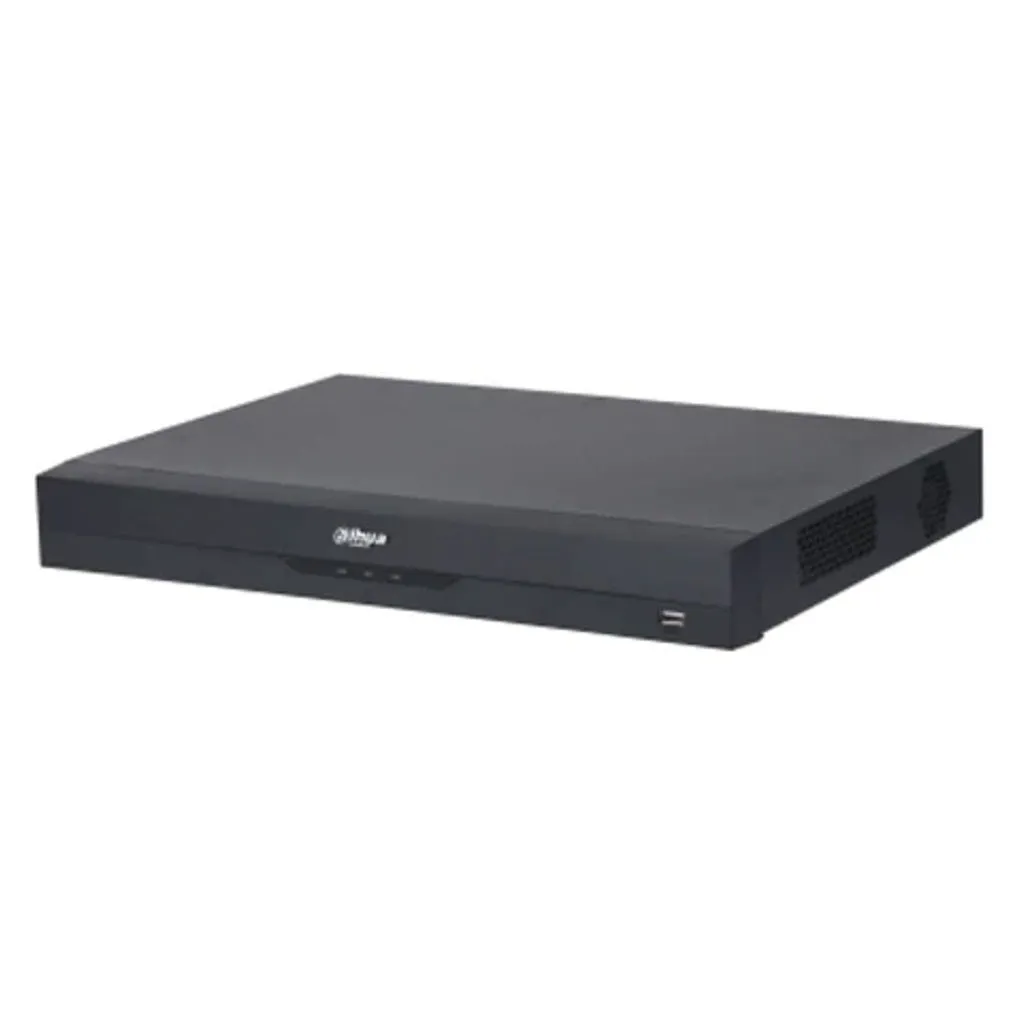

Product Code	DH-XVR5208AN-4KL-I3
Series	WizSense
Main Processor	Embedded processor
Operating System	Embedded Linux
Perimeter Performance AI by Recorder (Number of Channels)	2 channels
Face Attributes	6 attributes: Gender, age groups (6), glasses, expression(8), face mask, beard, with up to four detection panels displayed at the same time.
Face Detection Performance of AI by Recorder (Number of Channels)	2 channels, and a single channel can detect up to 12 faces.
Face Database Capacity	Up to 10 face databases and 20,000 pictures.
Face Recognition Performance of AI by Recorder (Number of Channels)	2 channels
SMD Plus by Recorder	Full-channel SMD Plus (AI by recorder), secondary filtering for human and motor vehicle SMD Plus, reducing false alarms caused by leaves, rain and lighting condition change
Analog Camera Input	8 channels, BNC: adaptive access by default; HDCVI, AHD, TVI and CVBS access can be configured.
Camera Input	1. CVI: 4K, 6MP, 5MP, 4MP, 1080p@25/30 fps, 720p@50/60 fps, 720p@25/30 fps. 2. TVI: 4K, 5MP, 4MP, 3MP, 1080p@25/30, 720p@25/30 fps. 3. AHD: 4K, 5MP, 4MP, 3MP, 1080p@25/30, 720p@25/3fps.
IP Camera Input	8 8 channels, each channel up to 8MP *After IP channels are added beyond the existing channels, the AI Function (IVS, SMD, FACE) will be disabled.
Encoding Capacity	All channel 4K (1 fps–7 fps); 6MP (1 fps–10 fps); 5MP (1 fps–12 fps); 4K-N, 4MP/3MP (1 fps–15 fps); 4M-N/1080p/720p/960H/D1/CIF (1 fps–25/30 fps);
Dual-Stream	Supported (960H (1 fps–15 fps); D1/CIF (1 fps–25/30 fps)).
Video Frame Rate	PAL: 1 fps–25 fps. NTSC: 1 fps–30 fps.
Video Bit Rate	32 Kbps–6144 Kbps Per Channel
Audio Sampling	8 KHz, 16 bit Per Channel
